Getting Started with Oracle BI Publisher 11g


Purpose

This tutorial covers how to get started with Oracle BI Publisher 11g to create simple reports based on Oracle Database. Also, it teaches you how to create report layouts using the Layout Editor online, and how to schedule reports.

Time to Complete

Approximately 1 hour.

Overview

Oracle BI Publisher is a strategic enterprise reporting product from Oracle that provides the ability to create and manage highly formatted reports from a wide range of data sources. Oracle BI Publisher is available as part of the Oracle BI Enterprise Edition Suite and also as a stand alone reporting tool. Oracle BI Publisher report formats can be designed using Microsoft Word or Adobe Acrobat, the tools that are easy to use, and most users are already familiar with. Oracle BI Publisher also allows you to create reports from different types of data sources such as Oracle Database, Files, BI EE, Web services, and Discoverer.
Release 11g of Oracle BI Publisher has enhanced, easy- to-use user interface (UI), many enhanced features, and newly introduced salient features such as - Data Model Editor - a graphical user interface for building data models within the BI Publisher interface; and Layout Editor - a design tool that enables you to create report layouts within the BI Publisher interface.
In this tutorial you will be guided to create simple reports in BI Publisher based on Oracle Database. You will also be guided to work with the Layout Editor to create the layouts for the reports.

Prerequisites

Before starting this tutorial, you should:
1.
Have access to Oracle BI Publisher 11g or installed BI Publisher 11g as stand alone or as part of Oracle BI Enterprise Edition 11g.
Also, it is recommended to use the following versions of browsers - Internet Explorer 7.0 (or above), Mozilla Firefox 3.6.3 (or above).
2.
Have access to an Oracle Database11g (or 10g) with the sample schemas HR and OE installed and unlocked.
The exercises in this tutorial use the HR and OE schemas included in the Oracle Database.
3 .
Have executed the Repository Creation Utility ( RCU) scripts in Oracle Database 11g. This should be done before installing Oracle BI EE. RCU creates the BI Publisher scheduler repository.
Note: BI Enterprise Edition (BI EE) installer comes with these out of the box RCU scripts, that create the necessary schemas and the repositories in the Database for various components of BI EE including BI Publisher. You need an Oracle 11g Database to run these RCU scripts.
However, you can establish a JDBC connection and create data models and reports through BI publisher using both 10g and 11g Databases.

Getting Started with BI Publisher

This topic guides you to login to BI Publisher and get started. It has the following subtopics:
  • Logging in to BI Publisher and Navigating the Home Page
  • Browsing the catalog and Viewing reports
  • Setting Preferences

Logging in to Oracle BI Publisher and Navigating the Home Page


1 .
Enter the URL for BI Publisher in the browser window, which is of the format-
http://<hostname>: <port >/xmlpserver/. For example- http:/localhost:7001/xmlpserver/
This opens the Oracle BI Publisher Enterprise login page-
Screenshot for Step
2 .Login as a user with BI Administrator privileges.
When you login to BI publisher, the Home page is displayed-
Screenshot for Step
3 .The Home page is a task-oriented, centralized workspace combined with a global header, allowing access to Oracle BI Publisher objects, their respective editors, and help documentation.
Observe the various sections of the Home page ( greatly enhanced in 11g release to enable the users get started quickly with BI Publisher) :
For example you can see -
  • A Create section on the left that has options to help you create reports, data models, and other objects.
  • A Browse/Manage section on the left to help you browse and manage the catalog, jobs, and job history.
  • A Get Started section on the left to help you get started with BI Publisher, with links to various BI Publisher tools, Online Help, and Oracle Technology Network.
  • A Recent section on the right, personalized to each user so that the users can open/view the reports that have been accessed recently (when you login initially, you may not see any objects listed in the Recent section).
Screenshot for Step
Also, try the enhanced Search capability that enables you to search for objects by type.
Screenshot for Step
4 .
On the upper right side you can see the links for the Home page, Catalog, drop-down lists New, and Open.
Screenshot for Step
NoteAll these features make the navigation within BI Publisher easy for report developers and users.

Browsing the Catalog and Viewing the Reports


1 .Follow the steps listed here to browse the catalog and open a sample report (predefined).
Click the Catalog link in the Browse/ Manage section ( or Click the Catalog link found on the right side of the Home page).
Screenshot for Step Screenshot for Step
2 .
The Catalog page is displayed as a tree structure on the left side of the page with the details on the right.
See that the objects such as reports, data models are organized into folders.
Screenshot for Step
Note: The Samples folder found in Shared Folders contains a set of predefined sample reports. You will open one of these reports.
3 .Also see the tool bar with New drop-down menu that enables you to create new reports, scheduled jobs, data models and so on.
Screenshot for Step
Note that the tool bar also has other options such as copy, cut, paste, and other options that can be used when creating or managing the catalog objects such as data models, and reports.
Screenshot for Step
4 .
Navigate to the Human Resources folder in Samples. (This displays all the objects in the Human Resources folder.)
Screenshot for Step
You can also search for a report (or other objects) using some key word and view it. For example, in the Catalog page, select the Reports check box from the Search drop-down list, and enter a key word in the Text field beside it. In the example below, the search results in a list of reports that have "Sales" in name.
Screenshot for Step
5 .
Click Open link below the Salary Report.
Screenshot for Step

6 .
The Salary Report is opened in view mode. The report data is displayed using the Default layout. All the predefined layouts for the report are displayed as different tabs.
Screenshot for Step
You can also view the report using any of the supported formats. Click View icon displayed on the top of the report viewer towards the right. (Highlighted in the screen below).
Screenshot for Step
7 .Also, note the parameters defined in the report -Department and Employee, that display drop down lists for department names and the employees working in the corresponding departments.
For example, when you select Finance as the Department, and the Employee list shows the employees working in Finance department.
Screenshot for Step
8 .
You can click Financial Style, and Pivot Table tabs to view the data in report using these predefined layouts.
The following screens shows data for the Finance department using Financial Style layout:
Screenshot for Step
The followings screen displays data for the Sales department using Pivot Table layout.
Screenshot for Step

Setting Preferences


1 .
To set the Preferences , Click on the link Signed in as <user>, and select My Account from the drop-down list.
Screenshot for Step
2 .
This displays the Preferences screen with the General, My Group tabs/ links as shown in the screen below:
Screenshot for Step
You can set the Report Locale, UI LanguageTime Zone, and Accessibility Mode in the General Preferencessection.
  • Report Locale- A locale is a language and territory combination (for example, English (United States) or French (Canada)). BI Publisher uses the report locale selection to determine the template translation to apply , the number formatting and date formatting to apply to the report data.
  • .UI Language- The UI language is the language that your user interface displays in. The language that you selected at login will be selected as the default. However, you can choose from the languages that are available for your installation through this option.
  • Time Zone - Select the time zone to apply to your reports. Reports run by you (this user) will display the time according to the time zone preference selected here.
  • Accessibility Mode- Setting this to "On" will display the report catalog in a tree structure that is accessible via keyboard strokes
Note: If running BI Publisher integrated with a Security Model other than BI Publisher, these preferences may be inherited from the other security model and you will not be able to change these values.
3 .
Click the My Groups tab to view a list of the application roles to which you are assigned. You cannot modify this list.
Screenshot for Step
To change your password, click the Password tab of the My Account dialog.
Note: Password tab is visible only when you use BI Publisher Security.

Configuring the Data Sources

Types of Supported Data Sources

Oracle BI Publisher supports various types of Data Sources such as JDBC data sources (Oracle Database, and other Databases), XML Files, BI EE Reports (Answers), JNDI data sources, OLAP data sources, Fusion Application Data sources, Web Services, HTTP data sources, and Discoverer.
Before you create a data model based on these data sources, you need to configure a connection to these data sources first. In this topic, you will learn how to configure a JDBC connection to an Oracle Database, and also you learn how to define a File data source.
This topic has the following subtopics-
  • Defining a JDBC Connection
  • Configuring File Data Location
  • Defining a JNDI Connection

Defining a JDBC Connection


1.To define a JDBC connection click the Administration link found on the right side of the BI Publisher page.
Screenshot for Step
This displays the BI Publisher Administration page as shown below (Observe the Data Sources section in the screen below):
Screenshot for Step
2.
Click the JDBC Connection link found under the Data Sources section in the Administration page.
Screenshot for Step
3.
This displays the Data Sources page. In the JDBC section, click Add Data Source to create a JDBC connection to your database.
Screenshot for Step
4.
In the Add Data Source page that is displayed, enter the details as given below -
  • Data Source Name - OE
  • Driver Type - Select a driver type to suit your Database (for example, you can select Oracle 10g or Oracle 11g to suit your Database).
  • Database Driver Class - oracle.jdbc.driver.OracleDriver (Define a driver class to suit your Database)
  • Connection String - Provide the database connection details. For example hostname:port:sid.
  • User name - OE (Database user name)
  • Password - OE (Database user password)
Do not click Apply or Cancel after defining the above details. Click Test Connection.
Screenshot for Step
Note: To continue with this tutorial exercises, the sample schemas OE, and HR should be installed in your Oracle Database as mentioned in the Prerequisites. Else, you will not be able to define this JDBC connection.
5 .
If the connection to the database is established, a confirmation message is displayed indicating the success.
( As shown in the screen below).
Then click Apply.
Screenshot for Step
6 .
You can see this newly defined connection (OE) in the list of JDBC Data Sources.
Screenshot for Step
Note: You can also set up the the default connection demo to point to OE schema in your database, as the samples use this connection. Then the demo connection can be used as the default data source for this tutorial too.

Configuring File Data Location


1.BI Publisher ships with a repository of various sample files and reports. These are available in BI Publisher home.
To define a File data source, click the File tab in the BI Publisher Administration page.
Click the demo files link to update the file location.
Screenshot for Step
( If you want to create a File data source with a different name, you can click Add Data Source. )
2.
Define the top level directory which has all the sample files (repository).
Screenshot for Step
( Using this demo files data source, users can access all the files in the top level directory and also it's subdirectories).

Defining a JNDI (Java Naming and Directory Interface) Connection

BI Publisher supports connecting to a JDBC data source via a connection pool. Using a connection pool increases efficiency by maintaining a cache of physical connections that can be reused. When a client closes a connection, the connection gets placed back into the pool so that another client can use it.
Note: JNDI Connection concept is briefly introduced here, as you need to first set up the connection pool in your application server and access it via Java Naming and Directory Interface (JNDI). Then, you can define the JNDI connection in BI Publisher by entering the required fields in the JNDI connection definition page, so that BI Publisher can utilize the pool to establish connections.

Creating a Data Model

In release 11g, Oracle BI Publisher introduces the Data Model Editor, a graphical user interface for building data models within the BI Publisher interface. It enables you to perform the following tasks:
  • Create Data Sets - Access data from a wide range of sources: RDBMS, OLAP, WebServices, BI Analyses, XML files, Excel and others.
  • Query data - Build SQL or MDX queries to extract data from relational or multidimensional (OLAP) data sources.
  • Structure data - Define master-detail relationships between data sets to group data at multiple levels to optimize document generation.
  • Aggregate data - Create group level totals and subtotals.
  • Customize data - Modify data field names to conform to business terms and reporting requirements.
  • Create calculations - Compute data values that are not stored in the underlying data sources that are required for reporting.
  • Advanced tasks - Define parameters and lists of values (LOV), triggers, and other advanced elements as required by reports and report users.
In this topic, you are guided to create Data Model based on SQL query using the JDBC connection you defined in the previous topic. Also, you will learn how to add parameters and LOVs to the data model.

Defining Default Data Source, and Output Options


1.Note: Before starting the creation of Data Model, you will first create a folder to save all your objects such as reports, data models and so on.
In the Home page, click Catalog link under the Browse/Manage section.
In the Catalog page that is displayed, select the My Folders node, click the New icon on the tool bar.
Screenshot for Step
Select Folder from the drop-down menu to create a new folder.
Screenshot for Step
Enter Learn as the name of the folder, (optionally enter a description), and click Create.
Screenshot for Step
You can see that the folder gets listed in My Folders.
2.Now, you can invoke the Data Model editor in one of the following ways-
  • From the Home page Create section, select Data Model.
  • From the Catalog page, click New icon and select Data Model from the drop-down menu.
Screenshot for Step
Show Screenshot for Step
3 .
Observe the Data Model Properties page that is displayed on the right.
Select a Default Data Source (that points to the OE schema in your database). Optionally, add a description to the data model.
Screenshot for Step
Note:
  • Ensure that in the XML Output Options, the Include Parameter Tags is checked, and the Include Empty Tags for Null Elements, and Include Group List Tag check boxes are not checked.

    Screenshot for Step
  • For defining the Default Data Source, you can also edit the default demo data source to point to the OE schema in your Database, and use it.
  • Also, note that on the Properties page you can set many options in addition to specifying a default data source. For example, you can specify DB default package, and DB fetch size (the data engine’s default is 300), XML output options based on what XML tags you require in the resulting XML output.
4 .
To save the data model with a name, click Save As icon found at the top right corner of the page.
Screenshot for Step
Navigate to the folder that you want to save the data model object ( Learn in this example), enter an appropriate name for the Data Model , and click Save.
Screenshot for Step

Creating a SQL Query Data Set with Parameters and LOVs


1 .From the Data Model task pane on the left, select Data Sets.
Screenshot for Step
2 .From the Data Set drop-down menu, select SQL query as the type of data set.Screenshot for Step
3 .
In the Create Data set -SQL dialog box that appears, enter an appropriate name for the data set, accept the default data set option (as you have already defined it in the Data Model), and click Query Builder to create a query.
Screenshot for Step
4 .The Query Builder window appears displaying the OE schema objects on the left side.
Click DEPARTMENTSand EMPLOYEES tables to add them to the Model canvas on the right.
Screenshot for Step

5 .
Now, define a join between these two tables as follows:
Click the box beside DEPARTMENT_ID column in the DEPARTMENTS table.
Similarly click the box beside DEPARTMENT_ID column in the EMPLOYEES table.
(These boxes, when marked for joins turn light gray. )
Also note that a fine line joining the tables appears in the Model canvas.
Screenshot for Step
6 .
Select the following columns from the tables (by selecting the check boxes beside the column names):
-Select DEPARTMENT_NAME from the DEPARTMENTS table
-Select FIRST_NAME, LAST_NAME, HIRE_DATE, and SALARY columns from the EMPLOYEES table
(See the screen below)
Screenshot for Step
7 .Click the Conditions Tab . Change the column names and remove "_" to have more appropriate aliases. Change the aliases for the columns as below:
  • DEPARTMENT_NAME to DepartmentName
  • FIRST_NAME to FirstName
  • LAST_NAME to LastName
  • HIRE_DATE to HireDate
  • SALARY to Salary
Screenshot for Step
8 .Also, type "IN (:P_DNAME)" in the Condition field for the department name column, as shown in the screen below . This will define a parameter P_DNAME on the department name column.
Screenshot for Step
Note: The IN condition is being used here for the parameter to accept All or Multiple values for the department name column.
The aliases and display names can be changed in the Data Model page, either in the Diagram or in the Structure too:
Screenshot for Step
Screenshot for Step
9 .
Click Results to see how the query results appear in Query Builder.This will prompt you to enter a department name for the parameter, enter Sales and click OK.
Screenshot for Step
View results. Click Save to save the query.
Screenshot for Step
10 .
This takes you back to the Create Data set -SQL dialog box, and observe that the query you created is reflected in the SQL Query area.
Enter an appropriate name such as Emp_DataSet, and click OK to add this data set to your data model.
Screenshot for Step
11 .
A message asks whether you want to create a bind variable. Click OK. to create the parameter
Screenshot for Step
Note that the parameter created is listed on the left under Parameters node in Data Model:
Screenshot for Step
Every time you make changes to the Data Model (changes to the data set, adding parameters or any other changes), click Save icon (found at the top right corner) to save the Emp_DM data Model .
12 .
In the Data Model pane, click List of Values node. In the List of Values pane click the the + sign to Create new List of Values.
Select the following Options:
  • Enter DepName as the Name of the LOV
  • Select SQL Query as the Type from the drop-down list
  • Ensure that OE is selected as the Data Source
  • Click Query Builder to define the query that returns department names for the LOV
Save the Data Model.

Screenshot for Step
13 .
In the Query Builder page, select DEPARTMENT_NAME from the DEPARTMENTS table. Click Save.
Screenshot for Step
Click Save to save the Data Model. The query for the LOV should look like this:
Screenshot for Step
14 .
Now, set the properties for the P_DNAME parameter to use this LOV:
Select P_DNAME parameter listed under the Parameters node.
Enter Default value as * (the character star) , and select Menu as the Parameter Type (the default parameter type is Text).
Screenshot for Step

15 .
Ensure that DepName is selected as the List of Values for the parameter.
Ensure that Multiple SelectionCan select all, and All Values Passed options are selected.
(These options allow you to select all / multiple values for the department.)
Also, change the Display Label to an appropriate one like- Department:
Screenshot for Step
Click Save to save the Data Model.
16 .
You can edit the query manually further to concatenate Last Name and First Name columns as Employee Name. Edit the query to look like this:
Select DEPARTMENTS.DEPARTMENT_NAME as "Department Name",
EMPLOYEES.FIRST_NAME || ' '||EMPLOYEES.LAST_NAME as "Employee Name",
EMPLOYEES.HIRE_DATE as "Hire Date",
EMPLOYEES.SALARY as "Salary"
from OE.DEPARTMENTS DEPARTMENTS,
OE.EMPLOYEES EMPLOYEES
where DEPARTMENTS.DEPARTMENT_ID=EMPLOYEES.DEPARTMENT_ID
and DEPARTMENTS.DEPARTMENT_NAME IN (:P_DNAME)
Click OK and save the data model.
The query should look like this in Query Builder:
Screenshot for Step
NoteOnce you edited the query manually, you will not be able to edit in the Query Builder.


Viewing the XML Output and Saving the Sample Data


1 .You may have observed that In the current version of the BI Publisher, you can preview the XML data for the data model.
Click the XML icon (found at the right top corner of the page), to see the XML output for the data model you defined in previous topic.
Screenshot for Step
Note that All is selected for the Department parameter (as this is the default value ).
Select All for the number of rows, and click Run to see the XML data output for all the departments:
( A portion of the XML data is displayed here in the screen)
Screenshot for Step
2 .To save this as sample data, click the Open Menu drop-down list icon, and select Save as Sample Data.
Screenshot for Step
You can see that the sample.xml is listed in the Sample Data section of the Data Model ( as shown below):
Screenshot for Step
Note: It is very important to save sample data for a data model, else when creating Layouts, the previews do not appear correctly.
You can select various values (multiple/ single) for Department to see the data. You can also restrict the number of rows that you want to see:
Screenshot for Step
Screenshot for Step

Creating a Report

In this topic, you learn to create a report using the Data Model that you defined in the previous topic. You also create a simple layout using Layout Editor, and edit parameters.



Note: The steps in this topic are all continuous, so do not close any window or logout from BI Publisher unless you are asked to do so.
1 .If not logged in, login into BI Publisher, and go to My Folders> Learn folder in Catalog pane.
Click New (found at the top left corner of page) to see the drop-down menu and click Report to create a new report.
Screenshot for Step
2 .Navigate to My Folders> Learn. Select Emp_DM data model and click Open.
Screenshot for Step
It displays the options to create, use a shared template, or upload a report layout.
Select Blank (Portrait) under the Basic Templates section to create a simple report layout.
Screenshot for Step

Note: You can define a Layout for the report at the time of creating report, or create it at a later point of time.Creating report layouts using the Layout Editor is covered in detail in the next topic.
3.This opens Layout Editor, with a blank page:
Screenshot for Step
4.Click Insert > Data Table from the menu to insert a data table in the layout page.
Screenshot for Step
5.Select and drag the elements in the following order from the Data Source pane to the [Drop a Data Item Here] area of the table:
  • DEPARTMENT_NAME
  • EMP_NAME
  • HIRE DATE
  • SALARY
Screenshot for Step
As you drag an element, position each successive item directly to the right of the previous element and release to create each column, so that the data table, after adding all the columns it looks like this:
Screenshot for Step
6.Click the Save icon found on the top right corner to save this layout.
Enter Default Layout as the name of the layout, and click Save.
Screenshot for Step
7.This brings you back to the Layout Editor.
Click the Preview icon drop-down list (highlighted in the screen) to preview the data in Interactive format (this is also the default format).
Screenshot for Step

Screenshot for Step
Note: You can perform sorts and selection interactively here. Close the Interactive Viewer.
8..Click Return in Layout Editor to return to the Edit mode of the report.
Observe the various links on this page that will help you edit the data model, parameters, properties, and layouts for the report. You can also display the layouts as Thumbnails or as a List.
Screenshot for Step
NoteParameters link is displayed, only when the data model you selected for a report has parameters defined.
9.Click Save icon (found at the top right corner of the page) to save the report. (You can also click Save As icon ).
Screenshot for Step
Navigate to My Folders> Learn. Enter Employee Salaries By Department as the report name and click Save.
Screenshot for Step
10 .Click the Parameters link and it shows the details for the parameters. You can make changes to the parameter values. Also, you can opt to show or not to show the parameter in the report.
Clear the Show check box not to show the parameter.
Note: The report parameters are edited here not to show them in layouts. (This is not mandatory, but this is being done here to depict all the data in the layout graphs that you will create in the next topic.)
Screenshot for Step

Building a Layout Using Layout Editor

Release 11g of Oracle BI Publisher introduces an online Layout Editor, a design tool to create and publish report layouts from within BI Publisher interface. The Layout Editor provides an intuitive drag-and-drop interface for adding common components to your report layout from within your web browser. The Layout Editor uses the sample data in the data model to immediately populate your layout components with report data during design-time. It also provides many advanced features to fully customize your reports.
The Layout Editor provides a new Interactive output type in addition to output types like PDF, RTF, Excel, PowerPoint, and HTML.  Interactive output enables lightweight interactions with the report data from within the browser such as Excel-like filtering and sorting of tabular data with fixed headers and footers
In this topic, you will design a layout with graphs and using the Layout Editor, for the Employee Salaries by Department report that you created in the previous topic.

Launching the Layout Editor and Adding a Grid Layout


1 .Click Return to return to the Edit mode of the report. (If the report
Now, click Add New Layout link to create a new layout for the report.
Screenshot for Step
2 .The Layout Editor is invoked, and displays the available Basic and Shared templates (templates for report layouts) to choose from.
Screenshot for Step
It displays the options to create, use a shared template, or upload a report layout.
Click Blank (Portrait) from the Basic Templates section to manually design the layout.
Screenshot for Step

Note: It is a good practice to use Pre-built templates for reports because:
  • They encourage consistent look and feel for layouts
  • They make report authors much more productive by taking care comment of elements like headers and footers.
However, here a blank portrait is being used to show how to create a template from scratch.
3 .This shows blank page (portrait) in Layout Editor . Click Layout Grid to insert a grid.
Screenshot for Step
In the Insert a Layout Grid screen, enter 2 as the number of rows and 2 as the number of columns for the grid. Click OK.
Screenshot for Step
(You will add various report components such as charts, tables, and pivot tables in the the grid rows and columns in the next subtopics.)
Note: Using Layout Grids to control pixel perfect placement of objects in the layout is a best practice.
4.The layout grid with 2 rows and 2 columns is added:
Screenshot for Step
Now, merge the cells in the second row. Use <CTRL> key to select both the cells in the second row of the grid, (when the cells are selected, the color turns yellow) click Join Selected Cells option available in the Layout Gridmenu.
Screenshot for Step

Working with Charts


5.Select the first cell in the first row of the grid layout, and click Chart from the Insert menu in the ribbon.
Screenshot for Step
This action inserts a chart template with prompts as shown below:
Screenshot for Step

6 .From the Data Source pane on the left-
  • Select and drag the SALARY element to the Drop Value Here prompt in the empty chart
  • Next, select and drag the DEPARTMENT_NAME element to the Drop Series Here prompt.
Screenshot for Step
This would populate the chart with some sample data.
Screenshot for Step

7 .Next, change the Properties of the SALARY element in the chart to average the value.
  • To do this, first select the SALARY item in the chart, then click the drop-down menu next to Summation under Formula, and select Average from the drop-down menu.
Screenshot for Step
The chart changes to reflect the average salaries by department.
Screenshot for Step
You can leave the default style for the chart or select from the supported chart styles.
Screenshot for Step
To add a title for the chart, first, Add a row above this chart in the grid layout. Select any of the the grid cells in the first row, and click the Add a Row Above icon.
Screenshot for Step

Now select the cell right above the chart, and click Insert tab , and then click Text Item.

Screenshot for Step
8 .Next, add a title for the chart.
Double click the text item to select it, then click again to edit it.
  • Delete the default text and type Average Salary by Department as the Title.
  • Select the text and choose Tahoma as font, 12 as the font size, and Bold as the style.
  • Center the title by clicking the Center Alignment icon.
Screenshot for Step

9 .Click Save As icon in the toolbar, and save the Layout as Departmental Salaries.
Screenshot for Step

Screenshot for Step
10 .Return to complete the layout in the Layout Editor.
Now, select the cell beside the bar chart that you have inserted. Follow the above steps to insert a Pie chart.
The steps are briefly listed here:
  1. Select the cell beside the chart that you have inserted, and then click the Insert tab. Click Chart.
  2. To change the chart type to a pie chart, expand the Chart Types menu.
  3. Select the Pie chart to insert an empty pie chart with prompts in the grid cell.

    Screenshot for Step
  4. To populate your pie chart: From the Data Source pane, select and drag SALARY to Drop Value Here, andselect and drag DEPARTMENT_NAME to Drop Series Here
  5. Add Percentage Salary by Department as the Title.
  6. Use Tahoma as the font, 12 as the size, and Bold as the style. Align the title in the center.
  7. Click Preview icon,and select PDF from the drop down list to preview your chart :Screenshot for Step

    The preview should now look like this:

    Screenshot for Step
Click Save icon in the toolbar to save the changes to the Departmental Salaries layout.

Adding a Data Table to the Layout


1.Select the lower row (which has the cells merged).
Click Insert tab. Click Data Table to insert the data table component into the layout.
Screenshot for Step
2.Select and drag the elements in the following order from the Data Source pane to the [Drop a Data Item Here] area of the table:
  • DEPARTMENT_NAME
  • EMP_NAME
  • HIRE DATE
  • SALARY
As you drag an element, position each successive item directly to the right of the previous element and release to create each column.
After you insert all the columns notice that a Grand Total row is automatically inserted .Screenshot for Step
3 .Click Preview in PDF icon in the toolbar to preview the layout -
Screenshot for Step
Click Save to to save the Departmental Salaries layout.
Note: You can edit the layout that is saved in one of the following ways:
  1. Click Actions and select Edit Layout in the view mode of the report
    or
  2. Open the report in Edit mode (click Edit link below the report in catalog page) and select the layout to be edited in the Layout section, and click Edit (pencil icon)

Formatting the Data, and Working with the Page Layout Features

Layout Editor enables you perform many formatting tasks such as -
  • Change the back ground, text colors, and other text attributes
  • Apply number formats
  • Define groups/totals/ subtotals, and sorts
  • Apply conditional formats
  • Define page layout using headers, footers and page breaks.
Note: Most of the above formatting tasks can be done using the options in the menu ribbons. The most commonly used formatting properties are found in the context sensitive menu ribbons on the tool bar.  For more fine grained properties, you can use the property pane on the left.
1 .Changing Background, Text colors, and other Attributes :
In the table select a column header, for example DEPARTMENT NAME.
From the menu ribbon, change the properties as below:
Font
to ArialFont Size to 10, and Font Weight to Bold.
Screenshot for Step
2 .Click Background Color icon from the properties listed in the Appearance section. Select a color (light blue is selected in the example here) from the Color Picker screen and click OK.
Screenshot for Step

Similarly, click the Font color icon (highlighted in the screen) to change the text color for this column header. Select a color (like Dark blue) from the Color Picker.
Change the background and text colors for all the column headers in-line with the DEPARTMENT_NAME.
Hint: Use the <CTRL> and <SHIFT> keys to select the remaining columns headers, and change the background and text colors to the same colors you used for the DEPARTMENT NAME column header. Similarly, select the column footers (totals ) and change the colors .
Note that the Properties pane (on the left) changes accordingly:
Screenshot for Step
Similarly, apply same formats as above to the footer row (Totals row).
3 .Change the all the column (data cells) fonts to Arial with size 10.
Click Save to to save the Departmental Salaries layout.
The table should appear like this after the above formatting changes:
Screenshot for Step

You can also modify the other properties such as Text Alignment. Ensure that the data in the numeric columns - such as SALARY is justified to the right .
4 .
Adding Number Formats:
You can add appropriate formats to the numeric or date columns such as SALARY, YEAR, HIRE DATE etc.
To change the format for SALARY, click anywhere below the column header in the data area to select SALARY column. From the Data Formatting drop down list, that is displayed in the ribbon, select $1,234.57 (Currency) as the format.
Screenshot for Step
Similarly, select the same format for the Salary Total (last row). Click Save icon to save the changes to the Layout.
Now, adjust the decimal places to the right. Click Move Right twice to remove the decimals in Salary column and the Totals.
Screenshot for Step
The table should now look like this (observe the formats for Salary column):
Screenshot for Step

5 .Similarly, click HIRE DATE column and apply the appropriate date formats:
Screenshot for Step
The table looks like this:
Screenshot for Step
6 .Defining Groups/Totals, and Sorts:
In the table you can add groups, totals, and sorts.
Click the data in the DEPARTMENT NAME column to select the same, and select Group Above from the Groupingdrop-down list that appears in the Column menu.
Screenshot for Step
Note: Instead of using menu options, you can also drag DEPARTMENT NAME out of the table and drop it just above the table to add a repeating group.
A total for the grouped column is automatically added at the end of the group in the table:
Change the font, style, background and text colors as appropriate for DEPARTMENT NAME from the menu options in the ribbon.
The table should appear like this after you defined a group on DEPARTMENT NAME column, and applied appropriate formats:
Screenshot for Step
Note: Every time you make changes, do not forget to click Save and save the changes to the template.
7 .Click Preview in HTML icon to see the data in HTML.
Screenshot for Step
Scroll down to see the table:
Screenshot for Step
8 .You can also define sorts on the columns in the table. You can define an ascending or descending sorts on columns.
Select the data in EMPLOYEE NAME column and click Ascending Order (A-Z) icon in the Sort menu. The products are arranged in alphabetical order.
Screenshot for Step
A portion of the data table, the data for the Purchasing department is shown below, note that the data is sorted by Employee Name:
Screenshot for Step
(You can also sort by salary, in which case a numeric sort is applied as appropriate.)
9 .Applying Conditional Formats:
Conditional formats help you to highlight the data in fields based on a condition. For example, you may want to do a pay revision to reduce attrition rates, and may want to see which employees are earning very good salaries, and which employees are not earning so well (say less than 3000 USD).
To apply simple conditional formats on SALARY select the data in the column and from the Conditional Formatting menu, click Highlight.
Screenshot for Step
10 .In the Highlight screen that appears, select is less than or equal to from the Operator drop-down list. Enter 3000as the Value. Set Bold as the Text style.
Click the box beside the Background Color field.
Screenshot for Step
In the Color Picker, select Red as the background color. Click OK .
Screenshot for Step
This takes you back to the Highlight definition dialog, preview how conditional format looks like and click OK.
Screenshot for Step

11 .Define two more conditional formats as given below:

1. One with the Operator - is greater than, and enter the Value as 9000. Apply Green as the back ground color, and set Bold as font style. (See the screens below).
Click OK.

Screenshot for Step

2. Also define a conditional format with the Operator - is between , and enter the Values as 3000 and 5000 . Applyyellow as the background color, and Bold as font style. (See the screen below).
Click OK.
Screenshot for Step

Click Save icon to save the Departmental Salaries template.
12 .Click Preview in HTML icon to see the data in HTML ( a portion of the table data is shown below, note that all the three conditional formats that you defined are applied on the SALARY column) .
Screenshot for Step

Note: Some of the salient features of Layout Editor that are helpful in creating report templates are briefly covered here. If you have time, try experimenting with other components , and other features such as section, pivot table, gauges, images, and Group Left with subtotals.
13 .Working with Page Layout Features:
In the layout that you have created with the report components such as charts and table, you may want to add page breaks after each component, and in the table after each year. The next few steps guide you to add page breaks, headers , and/or footers to the report layout.
In the grid layout , select the second row which has charts. Click Insert, and select Page Break from the
Page Elements section in the menu.
Screenshot for Step

Similarly, add a page break in the next row before the end of the section for DEPARTMENT NAME (group). Click inside the table just before the end of the section.
Select Insert> Page break from the Page Elements section in the menu. (This inserts a page break after each department data in the table.)
Screenshot for Step

14 .To see if the page breaks are inserted at right places, preview the layout in PDF. Click Preview in PDF icon.
Notice the page breaks in the PDF file:
Screenshot for Step

Scroll down to see the second page. Note that a page break is inserted after each department data:
Screenshot for Step
15 .To insert page/report header and footers, click Page Layout. This displays all the menu options for Page Layout in the ribbon. Click Report Header.
Screenshot for Step
A report header (place holder) is inserted into the layout.
Screenshot for Step

Insert a Text Item in the header, and double click the text item to edit it. Enter Employee Salary Analysis by Department as the report header. Apply appropriate formats for the report header.
Preview the output in Interactive viewer.
Screenshot for Step

Screenshot for Step
Observe that you can interactively select a department to view the data.
Also, when you click the interactive ' v ' shaped icon for each column you can see the MS Excel like, interactive filtering and sorting features.
Screenshot for Step
16 .Similarly click Page Footer to insert a footer in the layout. An icon for the page footer at the end of the grid.
Insert elements such as page numbers, simple text, time and date into these columns. An example is given here:
  1. First, select the page footer, and insert a Grid of a single row with 3 columns. Insert text items into each of these columns.
  2. Edit the first column in the Grid in the page footer item so that the text is in the format - " <page no> of <total no. of pages>.
  3. Double click this text item in the first column, and click Page Number icon from the Text menu in the ribbon
  4. Beside the page number icon that is inserted into the Page Header, type "of "
  5. Now, click Page Total icon from the Text menu.
  6. Similarly, insert simple Text such as "Confidential" in the second Grid column, and Date and Time in the third column of the footer.
The footer should look like this:
Screenshot for Step
The report with the headers and footers defined should look like this in PDF:
Screenshot for Step
Screenshot for Step

Note: If you have time, you can experiment with various elements such as gauges, images etc.

Scheduling a Report

This topic guides you through the following subtopics:
  • Confirming that the scheduler is configured
  • Defining Delivery Destinations
  • Creating Scheduled Report Jobs
  • Managing Job History and Jobs

Confirming that the Scheduler is Configured

Oracle BI Publisher Enterprise enables you to schedule reports, and deliver the executed output to various destinations. BI Publisher Scheduler is configured as a part of Oracle BI Enterprise Edition installation process. However, ensure that the scheduler is configured properly, before you start scheduling the reports.
1 .Log in (if not logged in) to BI Publisher (Web) as a user with BI Administrator privileges.
Click Administration link (found at the right top corner of the BI Publisher page):
Screenshot for Step
In the Administration page, click the Scheduler Configuration link in the System Maintenance section
Screenshot for Step
2 .In the Scheduler Configuration page that appears, click Test Connection in the Database Connection section to check if the scheduler is configured properly.
Screenshot for Step
This should display the following message indicating the connection was successful:
Screenshot for Step
Now, you are ready to schedule your reports.

Defining Delivery Destinations

Oracle BI Publisher enables you to setup different delivery destinations such as - Email, Printer, Fax, WebDAV, HTTP, and other destinations, so that you can deliver your reports to these destinations. This topic guides you how to set up your Email and WebDAV destinations using BI Publisher Administration page.
1 .In the BI Publisher Administration page, ( you need to login to BI Publisher with BI Administrator privileges to access this page) you see a list of destinations in the Delivery section.
Click Email link in the Delivery section.
Screenshot for Step
2 .In the Email configuration page that appears, Click Add Server.

Screenshot for Step
3.In the Add Server page that appears,
  • Enter an appropriate name for the mail server in the Server Name field
  • Enter the Email server in the Host field
  • Enter the values in the following fields if applicable—
    • General field: Port
    • Security fields: User Name and Password
    Click Apply.
Screenshot for Step

Important Note: You must enter a unique name for each server regardless of the type (printer, fax, email, WebDAV, or FTP).
4.Similarly, you can add a WebDAV server as one of the delivery destinations. Click WebDAV link in the Administration page, and click Add Server.
  • Enter An Appropriate name in the Server Name fieldand Host for the WebDAV server
  • Enter the following fields if applicable—
    • General fields: Port
    • Security fields: Authentication Type (None, Basic, Digest) and Encryption Type (None, SSL).
    • Proxy Server fields: Host, Port, User Name, Password, Authentication Type (None, Basic, Digest)
Screenshot for Step

Creating Scheduled Report Jobs


1 .Login (If not logged in) to BI Publisher and go to My Folders> Learn folder in Catalog.
Click Schedule link found under the Employee Salaries by Department report.
Screenshot for Step

Note: If you do not see the Schedule link it is likely that you do not have Scheduler privileges or that the Scheduler is not configured properly.
2 .This displays the Schedule Report Job page.
In the General tabbed page, you can select report name and parameter values (select All as the value for the Department report parameter).

Screenshot for Step
3 .Click Output tab to define the output options. Ensure that "Use Bursting Definition to Determine Output& Delivery Destination" check box is not selected.
Select the following options:
  • Enter DeptSal as the Name, Select Departmental Salaries from the Layout drop-down list, and select an appropriate output format as PDF
  • Accept default values for locale, calendar, and select an Appropriate time zone from the drop-down list
  • Ensure that the Save Output check box is selected
Screenshot for Step
4 .Also, ensure that the Make Output Public option is not selected (if you select this option, all users can see the output of your scheduled report) , and Save Data for Republishing option is selected ( so that you can later republish the report with a different layout and output types).
You can also add a delivery destination for the scheduled report. In the Destination section, select Email as theDestination Type and click Add Destination.
Screenshot for Step
This shows an Email section below the Destination section. Add the mail ids in the To, CC, and Reply To fields as required, add a Subject to the mail, and type the message.
Screenshot for Step
Note:
  • For adding destinations for scheduled reports, you should have first configured them in the Administration page.
  • You can define multiple outputs for a single scheduled job and deliver each to separate destinations. For example, you might want to deliver a PDF output as an attachment to an email to a list of managers. You might also want to deliver the Excel output of the same report to a content management server (via WebDAV) at the same time.
5 .Click Schedule tab to define the scheduling options.
Select Run Now option to run the job immediately. Select the Frequency as Once from the drop-down list.
Screenshot for Step
You can also add Email Notification options, (as you have already defined Email delivery destination).
Screenshot for Step
Click Submit to submit the schedule.
6 .Enter Employee Salaries by Department-Sched as the Job Name and click Submit again.
Screenshot for Step

A message is displayed indicating that the job is submitted successfully. Click OK.
Screenshot for Step
7 .Scheduling a Report Job to run Weekly:
Follow the steps 1 - 3 listed above to create this job. In step 4, click Schedule tab, and select the following options—
  • Select Weekly from the Frequency drop-down list
  • Ensure that you have entered option to run the report Every week
  • Select Monday to run the report on every Monday
  • In the Start and End fields enter the start and end dates for the report, and make sure that the time is 8 am
Screenshot for Step
Click Submit to submit the job, and after specifying a name for the job click Submit again.
Select some of the different Frequency patterns available for scheduling the jobs. Note that the Specific Datesoption allows you to create a completely custom pattern to meet whatever calendar requirements you have.
Screenshot for Step



Managing Job History and Jobs


1 .Click Open (found at the top right corner of the page) and select Report Job History.
Screenshot for Step
The Report Job History page displays information about running and completed report jobs. You can see the report job that you created in the list as shown in the screen below. ( Note that the job status indicates success). Click the job name link ( Employee Salaries by Department -Sched) .
Screenshot for Step
You can also enter appropriate Search criteria to search for reports or search for the job history for a specific report. Observe the various search criteria that you can use.
2 .General job information and other job execution details are displayed for the specific report. Click DeptSal (in the Output Name column) , to see the scheduled report output using the Departmental Salaries layout that you created.
Screenshot for Step
Screenshot for Step
Click Return in BI Publisher.
Note: You can also click the Republish option to republish the scheduled job with a different layout and output options.

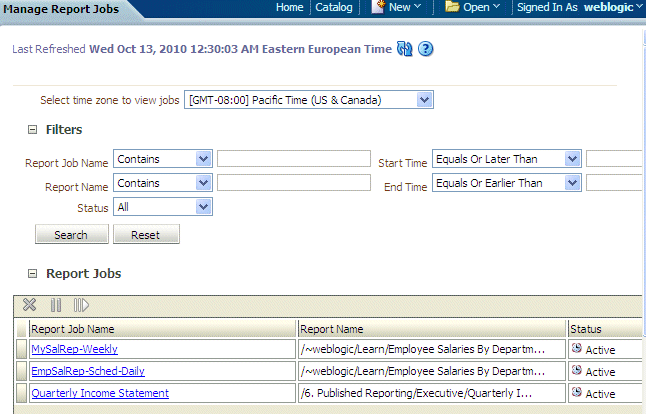

3 . Similarly, click Report Jobs to see the Manage Report Jobs page. This page page displays information about jobs that are scheduled for future dates, and also recurring report jobs. You can pause, resume, edit, or delete report jobs from this page.
Screenshot for Step
Screenshot for Step

4 . Click in the column beside a job name to select that job. Click Pause to suspend the job. (Observe that the job status changes to Paused.)
Screenshot for Step
If you want to resume the same, click Resume. Similarly, click Delete if you would like to delete the job.
Screenshot for Step

Summary

In this tutorial, you have learned how to:
  • Configure Data Sources
  • Create Data Model based on SQL query
  • Create and view simple reports
  • Build layouts using Layout Editor
  • Schedule Report Jobs
  • Manage Job History and Jobs

Resources

  • To learn more about BI Publisher, refer to additional OBEs on the OTN Web site (can link to a specific set of OBEs on the subject)

Oracle Fusion - Cost Lines and Expenditure Item link in Projects

SELECT   ccd.transaction_id,ex.expenditure_item_id,cacat.serial_number FROM fusion.CST_INV_TRANSACTIONS cit,   fusion.cst_cost_distribution_...
